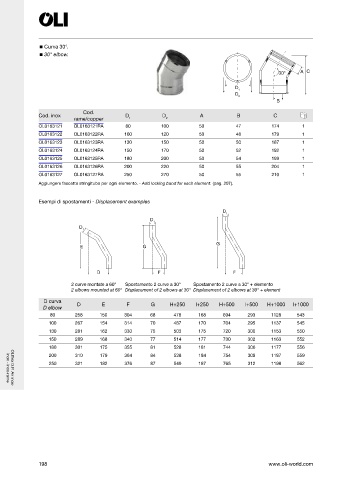

Curva 30°.
30° elbow.

30° A C

D
1
D 2
B
Cod.
Cod. inox D D A B C
rame/copper 1 2
OL0163121 OL0163121RA 80 100 50 47 174 1
OL0163122 OL0163122RA 100 120 50 48 179 1
OL0163123 OL0163123RA 130 150 50 50 187 1
OL0163124 OL0163124RA 150 170 50 52 192 1
OL0163125 OL0163125RA 180 200 50 54 199 1
OL0163126 OL0163126RA 200 220 50 55 204 1
OL0163127 OL0163127RA 250 270 50 55 210 1
Aggiungere fascetta stringitubo per ogni elemento. - Add locking band for each element. (pag. 207).

Esempi di spostamenti - Displacement examples
D
1
D
1
D
1
G
E G

D F F

2 curve montate a 60° Spostamento 2 curve a 30° Spostamento 2 curve a 30° + elemento
2 elbows mounted at 60° Displacement of 2 elbows at 30° Displacement of 2 elbows at 30° + element
D curva D E F G H+250 I+250 H+500 I+500 H+1000 I+1000
D elbow
80 258 150 304 68 478 168 694 293 1128 543
100 267 154 314 70 487 170 704 295 1137 545
130 281 162 330 75 503 175 720 300 1153 550
150 289 168 340 77 514 177 730 302 1163 552
180 301 175 355 81 528 181 744 306 1177 556
200 310 179 364 84 538 184 754 309 1187 559
250 321 182 376 87 549 187 765 312 1198 562

inox - inox-rame
OLI ex D.P. Air inox-
