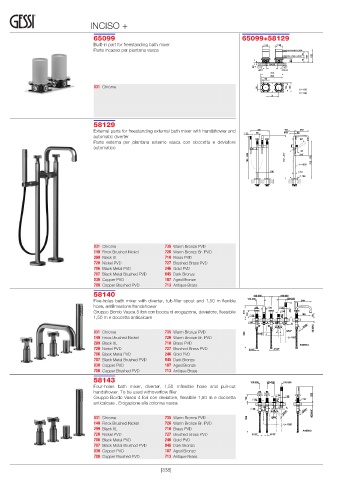

Page 338 - GESSI - CATALOGO 2022

INCISO +

65099 65099+58129
Built-in part for freestanding bath mixer 92 92
Parte incasso per piantana vasca MAXIMUM FINISH FLOOR
80
MINIMUM FINISH FLOOR 158 192
58 78
BASE
23 4 G1/2" G1/2"
HOT COLD
315
295
56
031 Chrome 56 115 135 X = 150
X = 180
X

58129
100
External parts for freestanding external bath mixer with handshower and 32 68 351 MIN 60 262
automatic diverter
60°
Parte esterna per piantana esterno vasca con doccetta e deviatore
automatico
36
- 862 - 877 245 - 782
783 797
L=1500 702
180 34
108

031 Chrome 735 Warm Bronze PVD
149 Finox Brushed Nickel 726 Warm Bronze Br. PVD
299 Black XL 710 Brass PVD
720 Nickel PVD 727 Brushed Brass PVD
706 Black Metal PVD 246 Gold PVD
707 Black Metal Brushed PVD 845 Dark Bronze
030 Copper PVD 187 Aged Bronze
708 Copper Brushed PVD 713 Antique Brass
58140 100 -200 100 -200
100 -200 100 -200
Five-holes bath mixer with diverter, tub-filler spout and 1,50 m flexible 244
hose, antilimestone handshower 68 34 32
Gruppo Bordo Vasca 5 fori con bocca di erogazione, deviatore, flessibile 173 34 222 193
1,50 m e doccetta anticalcare 112 55 60 79
36 A 36 A A
G3/8" MAX
031 Chrome 735 Warm Bronze PVD 629 G3/4" G3/4" 40
149 Finox Brushed Nickel 726 Warm Bronze Br. PVD L= 1500
299 Black XL 710 Brass PVD A=Ø33.5
720 Nickel PVD 727 Brushed Brass PVD G1/2" G1/2"
706 Black Metal PVD 246 Gold PVD
707 Black Metal Brushed PVD 845 Dark Bronze
030 Copper PVD 187 Aged Bronze
708 Copper Brushed PVD 713 Antique Brass
58143 100 -200 100 -200 100 -200
Four-holes bath mixer, diverter, 1,50 mflexible hose and pull-out
handshower. To be used withoverflow filler 68 68
34 222
Gruppo Bordo Vasca 4 fori con deviatore, flessibile 1,50 m e doccetta 112 55 60 32 34
anticalcare . Erogazione alla colonna vasca
36 A
36 A G3/8"
G3/4" MAX
031 Chrome 735 Warm Bronze PVD 629 G3/4" 40
149 Finox Brushed Nickel 726 Warm Bronze Br. PVD L= 1500
299 Black XL 710 Brass PVD
A=Ø33.5
720 Nickel PVD 727 Brushed Brass PVD G1/2" G1/2"
706 Black Metal PVD 246 Gold PVD
707 Black Metal Brushed PVD 845 Dark Bronze
030 Copper PVD 187 Aged Bronze
708 Copper Brushed PVD 713 Antique Brass
[338]
