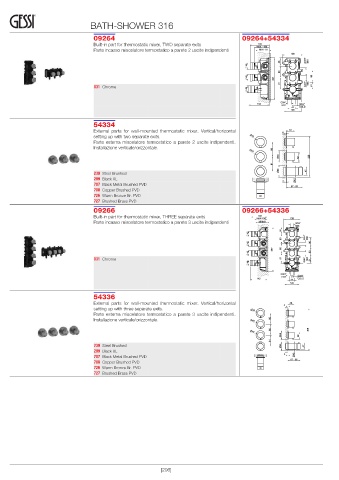

Page 296 - GESSI - CATALOGO 2022

BATH-SHOWER 316

09264 09264+54334
133
Built-in part for thermostatic mixer, TWO separate exits MAX - 106
Parte incasso miscelatore termostatico a parete 2 uscite indipendenti MIN - 81
139
56 G3/4" MIX
45
80
45 80
287
81 G3/4" MIX
031 Chrome 48 51
142 G3/4" G3/4"
HOT
44 COLD
120
54334
External parts for wall-mounted thermostatic mixer. Vertical/horizontal 4 48
setting up with two separate exits. ⌀43
Parte esterna miscelatore termostatico a parete 2 uscite indipendenti.
Installazione verticale/orizzontale.
⌀43 80
⌀65 52 226
81
⌀65 47
239 Steel Brushed
299 Black XL
4 ⌀42
707 Black Metal Brushed PVD 67 - 92
708 Copper Brushed PVD
726 Warm Bronze Br. PVD
727 Brushed Brass PVD
09266 09266+54336
133
Built-in part for thermostatic mixer, THREE separate exits MAX-106 139
Parte incasso miscelatore termostatico a parete 3 uscite indipendenti MIN-81 G3/4"
MIX
56
45
80 G3/4" MIX
45 80
367 80
45 80
031 Chrome 81 G3/4" MIX 51
48
G3/4"
HOT G3/4"
142 44 COLD
120
54336
External parts for wall-mounted thermostatic mixer. Vertical/horizontal 4 48
setting up with three separate exits. ⌀43
Parte esterna miscelatore termostatico a parete 3 uscite indipendenti.
Installazione verticale/orizzontale. ⌀43 80
80 306
⌀43
⌀65 52
81
239 Steel Brushed ⌀65 47
299 Black XL
4
707 Black Metal Brushed PVD ⌀42
67 - 92
708 Copper Brushed PVD
726 Warm Bronze Br. PVD
727 Brushed Brass PVD
