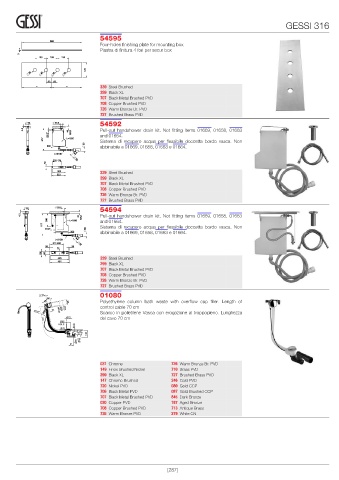

GESSI 316

54595
690
Four-holes finishing plate for mounting box
Piastra di finitura 4 fori per secur box
3
130 130 130
170
38 38 38 38
65 65
= = 239 Steel Brushed
299 Black XL
707 Black Metal Brushed PVD
708 Copper Brushed PVD
726 Warm Bronze Br. PVD
727 Brushed Brass PVD
50 33.5
54592
4.5 40 Pull-out handshower drain kit. Not fitting items 01669, 01658, 01663
G1/2" MAX and 01664.
517 L=1500 Sistema di recupero acqua per flessibile doccetta bordo vasca. Non
50
300
abbinabile a 01669, 01658, 01663 e 01664.
L=2100
202 -174
50
302 239 Steel Brushed
323
299 Black XL
707 Black Metal Brushed PVD
708 Copper Brushed PVD
726 Warm Bronze Br. PVD
727 Brushed Brass PVD
54594
50 33.5
4.5 40 MAX Pull-out handshower drain kit. Not fitting items 01669, 01658, 01663
306 L=1500 and 01664.
517
G1/2" 50 Sistema di recupero acqua per flessibile doccetta bordo vasca. Non
300 abbinabile a 01669, 01658, 01663 e 01664.
L=2100
317 -282
26 26
37
100 60
425 239 Steel Brushed
451
299 Black XL
707 Black Metal Brushed PVD
708 Copper Brushed PVD
726 Warm Bronze Br. PVD
727 Brushed Brass PVD
2-10 01080
62
48 86 Polyethylene column bath waste with overflow cap filler. Length of
control cable 70 cm
21 ⌀52 ⌀73
Scarico in polietilene Vasca con erogazione al troppopieno. Lunghezza
G1/2" HOLE
⌀72 del cavo 70 cm
⌀52
HOLE 6-16
⌀70
120
⌀40 ⌀50
91

031 Chrome 726 Warm Bronze Br. PVD
149 Finox Brushed Nickel 710 Brass PVD
299 Black XL 727 Brushed Brass PVD
147 Chrome Brushed 246 Gold PVD
720 Nickel PVD 080 Gold CCP
706 Black Metal PVD 087 Gold Brushed CCP
707 Black Metal Brushed PVD 845 Dark Bronze
030 Copper PVD 187 Aged Bronze
708 Copper Brushed PVD 713 Antique Brass
735 Warm Bronze PVD 279 White CN
