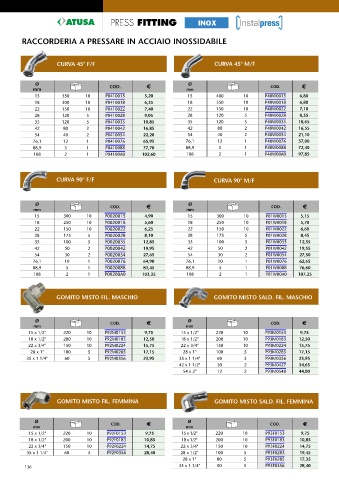

Page 136 - ATUSA - LISTINO 2023

PRESS FITTING INOX

RACCORDERIA A PRESSARE IN ACCIAIO INOSSIDABILE

CURVA 45° F/F CURVA 45° M/F

Ø Ø
mm COD. E mm COD. E
15 350 10 P0410015 5,20 15 400 10 P40W0015 6,80
18 300 10 P0410018 6,35 18 350 10 P40W0018 6,80
22 150 10 P0410022 7,40 22 150 10 P40W0022 7,10
28 120 5 P0410028 9,05 28 120 5 P40W0028 8,55
35 120 5 P0410035 10,85 35 120 5 P40W0035 10,65
42 80 2 P0410042 16,85 42 80 2 P40W0042 16,55
54 40 2 P0410054 22,20 54 40 2 P40W0054 21,10
76,1 12 1 P0410076 65,95 76,1 12 1 P40W0076 57,00
88,9 5 1 P0410088 77,70 88,9 5 1 P40W0088 72,40
108 2 1 P04100A0 102,60 108 2 1 P40W00A0 97,85

CURVA 90° F/F CURVA 90° M/F

Ø Ø
mm COD. E mm COD. E
15 300 10 P0020015 4,90 15 300 10 P01W0015 5,15
18 250 10 P0020018 5,60 18 250 10 P01W0018 5,70
22 150 10 P0020022 6,25 22 150 10 P01W0022 6,60
28 175 5 P0020028 8,10 28 175 5 P01W0028 8,45
35 100 5 P0020035 12,85 35 100 5 P01W0035 12,35
42 50 2 P0020042 19,95 42 50 2 P01W0042 19,55
54 30 2 P0020054 27,65 54 30 2 P01W0054 27,50
76,1 10 1 P0020076 64,90 76,1 10 1 P01W0076 62,65
88,9 5 1 P0020088 81,45 88,9 5 1 P01W0088 76,60
108 2 1 P00200A0 103,35 108 2 1 P01W00A0 107,25

GOMITO MISTO FIL. MASCHIO GOMITO MISTO SALD. FIL. MASCHIO

Ø Ø
mm COD. E mm COD. E
15 x 1/2" 220 10 P92M0153 9,75 15 x 1/2" 220 10 P93M0153 9,75
18 x 1/2" 200 10 P92M0183 12,50 18 x 1/2" 200 10 P93M0183 12,50
22 x 3/4" 150 10 P92M0224 15,75 22 x 3/4" 150 10 P93M0224 15,75
28 x 1" 100 5 P92M0285 17,15 28 x 1" 100 5 P93M0285 17,15
35 x 1 1/4" 60 5 P92M0356 23,95 35 x 1 1/4" 60 5 P93M0356 23,95
42 x 1 1/2" 30 2 P93M0427 34,65
54 x 2" 12 2 P93M0548 44,00

GOMITO MISTO FIL. FEMMINA GOMITO MISTO SALD. FIL. FEMMINA

Ø Ø
mm COD. E mm COD. E
15 x 1/2" 220 10 P92F0153 9,75 15 x 1/2" 220 10 P93F0153 9,75
18 x 1/2" 200 10 P92F0183 10,85 18 x 1/2" 200 10 P93F0183 10,85
22 x 3/4" 150 10 P92F0224 14,75 22 x 3/4" 150 10 P93F0224 14,75
35 x 1 1/4" 60 5 P92F0356 28,40 28 x 1/2" 100 5 P93F0283 19,45
28 x 1" 80 5 P93F0285 17,35
136 35 x 1 1/4" 50 5 P93F0356 28,40
