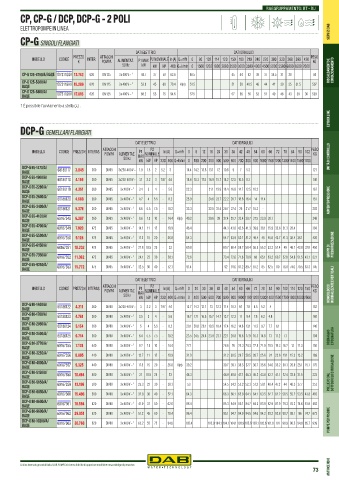

Page 75 - DAB PUMPS - LISTINO 50_2025

RAGGRUPPAMENTO: BT - BU
CP, CP-G / DCP, DCP-G - 2 POLI

SERVIZI DAB
ELETTROPOMPE IN LINEA
CP-G SINGOLI FLANGIATI

DATI ELETTRICI DATI IDRAULICI
MODELLO CODICE PREZZO INTER. ATTACCHI ALIMENTAZ. P1 MAX P2 NOMINALE In (A) Q=m h 0 90 102 114 120 150 180 210 240 270 300 330 360 390 420 PESO
3
KG
€
POMPA
50 Hz kW kW HP 400 Q=l/min 0 1500 1700 1900 2000 2500 3000 3500 4000 4500 5000 5500 6000 6500 7000
CP-G 125-4750/A/BAQE 1D7311GGV 12.743 620 DN 125 3 x 400 V ~ ¹ 44.7 37 50 62.6 46.5 45 44 42 39 37 34.5 31 28 44 RISCALDAMENTO E CONDIZIONAMENTO
CP-G 125-5300/A/ 1D7311GHV 15.286 620 DN 125 3 x 400 V ~ ¹ 53.9 45 60 78.4 H (m) 51.5 51 50 48.5 46 44 42 39 35 31.5 507
BAQE
CP-G 125-5800/A/ 1D7311GKV 17.816 620 DN 125 3 x 400 V ~ ¹ 68.2 55 75 94.6 57.5 57 56 55 53 51 49 46 43 39 36 539
BAQE
1 È possioile l’avviamento a stella ( ) .
Y
ESYBOX LINE

DCP-G GEMELLARI FLANGIATI

DATI ELETTRICI DATI IDRAULICI
P2
MODELLO CODICE PREZZO € INTERAS. ATTACCHI ALIMENTAZ. P1 NOMINALE In (A) Q=m h 0 6 12 18 24 30 36 42 48 54 60 66 72 78 84 90 102 PESO
3
POMPA
KG
50 Hz MAX UNITÀ DI CONTROLLO
kW kW HP 230 400 Q=l/min 0 100 200 300 400 500 600 700 800 900 1000 1100 1200 1300 1400 1500 1700
DCP-G 65-1470/A/ 60180117 3.845 360 DN 65 3x230-400 V ~ 1.9 1.5 2 5.2 3 14.4 14.2 13.8 13.1 12 10.6 9 7 5.3 127
BAQE
DCP-G 65-1900/A/ 60180118 4.159 360 DN 65 3x230-400 V ~ 3.1 2.2 3 7.97 4.6 18.6 18.3 17.8 16.9 15.7 14.2 12.5 10.5 8.3 140
BAQE
DCP-G 65-2280/A/ 60180119 4.351 360 DN 65 3 x 400 V ~ ¹ 3.4 3 4 - 5.6 22.3 21.1 19.9 18.4 16.8 14.7 12.5 10.2 167
BAQE
DCP-G 65-2640/A/ 60180120 4.688 360 DN 65 3 x 400 V ~ ¹ 4.7 4 5.5 - 8.2 25.9 24.6 23.7 22.2 20.7 18.8 16.4 14 11.4 151
BAQE AUMENTO PRESSIONE
DCP-G 65-3400/A/ 60180121 5.374 360 DN 65 3 x 400 V ~ ¹ 6.6 5.5 7.5 - 10.2 33.3 32.5 31.4 29.7 27.4 25 21.7 18.2 - 202
BAQE
DCP-G 65-4100/A/ 60167348 6.287 360 DN 65 3 x 400 V ~ ¹ 8.6 7.5 10 - 14.4 H (m) 40.2 39.6 39 37.4 35.7 33.4 30.7 27.5 23.9 20.1 248
BAQE
DCP-G 65-4700/A/ 60167349 7.920 475 DN 65 3 x 400 V ~ ¹ 14.1 11 15 - 19.9 46.4 44.3 43.6 42.6 41.3 39.6 38.1 35.9 33.6 31.3 28.4 388
BAQE
DCP-G 65-5500/A/ 60167350 9.128 475 DN 65 3 x 400 V ~ ¹ 17.2 15 20 - 26.8 54.3 54.7 53.9 52.1 51.2 49.4 48 45.6 43.7 41.3 38.4 36.1 420
BAQE
DCP-G 65-6150/A/ 60167351 10.232 475 DN 65 3 x 400 V ~ ¹ 21.8 18.5 25 - 33 60.8 60.7 60.4 59.7 58.4 56.5 55.2 53.3 51.4 49 46.7 43.8 37.8 450 PRESSURIZZAZIONE
BAQE GRUPPI DI
DCP-G 65-7350/A/ 60167352 11.362 475 DN 65 3 x 400 V ~ ¹ 24.1 22 30 - 38.1 72.6 73.4 72.6 71.6 70.9 68 65.1 63.2 60.7 57.8 54.9 51.5 43.1 521
BAQE
DCP-G 65-9250/A/ 60167353 15.772 475 DN 65 3 x 400 V ~ ¹ 32.5 30 40 - 52.1 91.4 92 91.6 91.2 89.7 87.2 85 82.5 80 76.8 74.6 70.5 63.3 745
BAQE
DATI ELETTRICI DATI IDRAULICI
P2
MODELLO CODICE PREZZO € INTERAS. ATTACCHI ALIMENTAZ. P1 NOMINALE In (A) Q=m h 0 24 30 36 42 48 54 60 66 72 78 84 90 102 114 120 150 PESO NORMALIZZATE E VERTICALI
3
KG
POMPA
50 Hz MAX MONOBLOCCO
kW kW HP 230 400 Q=l/min 0 400 500 600 700 800 900 1000 1100 1200 1300 1400 1500 1700 190020002500
DCP-G 80-1400/A/ 60180122 4.211 360 DN 80 3x230-400 V ~ 3 2.2 3 7.97 4.6 13.7 14.3 13.7 13 12.3 11.4 10.3 9.1 7.8 6.5 5.2 4 152
BAQE
DCP-G 80-1700/A/ 60180123 4.761 360 DN 80 3 x 400 V ~ ¹ 3.5 3 4 - 5.6 16.7 17.1 16.5 15.7 14.7 13.7 12.3 11 9.4 7.8 6.2 4.8 160
BAQE
DCP-G 80-2050/A/ 60180124 5.154 360 DN 80 3 x 400 V ~ ¹ 5 4 5.5 - 8.2 20.1 20.8 20.1 19.5 18.4 17.4 16.2 14.6 13.1 11.3 9.7 7.7 6.1 140
BAQE
DCP-G 80-2400/A/ 60180125 6.714 360 DN 80 3 x 400 V ~ ¹ 6.4 5.5 7.5 - 10.2 23.5 24.5 24.4 23.9 23.1 22.1 20.8 19.6 17.9 16.3 14.8 13 11.2 7.1 194
BAQE DRENAGGIO E FOGNATURA
DCP-G 80-2770/A/ 60167355 7.178 440 DN 80 3 x 400 V ~ ¹ 9.2 7.5 10 - 14.4 27.1 26.6 26 25.3 24.3 22.8 21.9 20.5 19.3 16.2 13 11.3 150
BAQE
DCP-G 80-3250/A/ 60167356 8.805 440 DN 80 3 x 400 V ~ ¹ 12.7 11 15 - 19.9 31.9 31.2 30.5 29.7 28.5 26.7 25.6 24 22.6 19.1 15.2 13.2 169
BAQE
DCP-G 80-4000/A/ 60167357 9.325 440 DN 80 3 x 400 V ~ ¹ 17.5 15 20 - 26.8 H (m) 39.2 39.7 39.1 38.5 37.7 36.7 35.6 34.6 33.2 30.1 26.9 25.1 15.1 175
BAQE
DCP-G 80-5150/A/ 60167358 10.464 500 DN 80 3 x 400 V ~ ¹ 21 18.5 25 - 33 48.3 48.9 48.6 47.7 46.3 45.3 43.8 42.7 41.1 37.4 33.6 31.5 223 SOTTOSUOLO E IRRIGAZIONE
BAQE
DCP-G 80-5650/A/ 60167359 12.196 500 DN 80 3 x 400 V ~ ¹ 25.3 22 30 - 38.1 53 54.5 54.2 53.2 52.3 51.2 50.1 48.4 47.2 44 40.3 37.7 353 PRELIEVO DAL
BAQE
DCP-G 80-6850/A/ 60167360 15.496 500 DN 80 3 x 400 V ~ ¹ 32.8 30 40 - 52.1 64.3 66.3 66.1 65.8 64.1 64.1 63.5 62.7 61.2 58.5 55.2 53.5 43.8 485
BAQE
DCP-G 80-8600/A/ 60167361 18.594 620 DN 80 3 x 400 V ~ ¹ 41.9 37 50 - 62.6 86.4 85.3 84.9 85.1 84.7 84.3 83.8 82.9 81.9 79.3 76.2 74.6 61.8 482
BAQE
DCP-G 80-9600/A/ 60167362 29.851 620 DN 80 3 x 400 V ~ ¹ 51.2 45 60 - 78.4 96.4 95.1 94.7 94.9 94.5 94.6 94.2 93.2 92.8 90.7 88.1 86 74.7 673
BAQE
DCP-G 80-10200/A/ 60167363 30.768 620 DN 80 3 x 400 V ~ ¹ 63.2 55 75 - 94.6 102.4 103.9 104.1 104.1 104.1 103.9 103.6 103.1 102.6 101.8 101 98.9 96.3 94.8 85.7 939 POMPE PER PISCINE
BAQE

ANTINCENDIO
r
i
t
e s
c
s
a
d
o
e m
f
r
i
v
v
o d
i
e
a
i p
r
g
n
a o
e
n
l
i
o
o
o
s
s
t
o g
r
i
t
a
l
s
t
i I
t
i
n
L Listino riservato grossisti Italia. DAB PUMPS si riserva il diritto di apportare modifice senna oooligo di preavviso. o .
