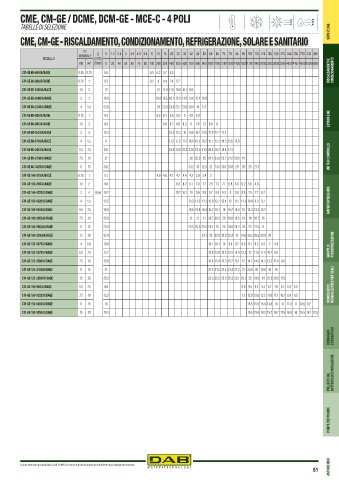

Page 53 - DAB PUMPS - LISTINO 50_2025

CME, CM-GE / DCME, DCM-GE - MCE-C - 4 POLI

TABELLE DI SELEZIONE SERVIZI DAB

CME, CM-GE - RISCALDAMENTO, CONDIZIONAMENTO, REFRIGERAZIONE, SOLARE E SANITARIO

P2
NOMINALE Q 0 1.2 2.4 3 3.6 4.5 4.8 6 12 18 24 30 36 42 48 54 60 66 72 78 84 90 102 114 120 150 180 210 240 250 270 330 360
MODELLO (m /h)
3
kW HP (l/min) 0 20 40 50 60 75 80 100 200 300 400 500 600 700 800 900 1000 1100 1200 1300 1400 1500 1700 190020002500300035004000 4167 450055006000
CM-GE 65-660/A/BAQE 0.55 0.75 6.6 6.5 6.2 5.7 4.8 RISCALDAMENTO E CONDIZIONAMENTO
CM-GE 65-920/A/BAQE 0.75 1 9.2 9.2 9 8.4 7.4 5.7
CM-GE 65-1200/A/BAQE 1.5 2 12 12 11.9 11.5 10.8 10.1 8.9
CM-GE 65-1680/A/BAQE 3 4 16.8 16.8 16.5 16.1 15.5 14.6 13.6 12.4 10.9
CM-GE 65-2380/A/BAQE 4 5.5 23.8 24 23.8 23.4 22.7 21.6 20.4 19 17.1
CM-GE 80-650/A/BAQE 0.75 1 6.5 6.3 6.1 5.8 5.5 5 4.5 3.9 ESYBOX LINE
CM-GE 80-890/A/BAQE 1.5 2 8.9 8.8 8.7 8.6 8.3 8 7.6 7.2 6.6 6
CM-GE 80-1530/A/BAQE 3 4 15.3 15.4 15.3 15 14.6 14.1 13.5 12.9 12.2 11.3
CM-GE 80-1700/A/BAQE 4 5.5 17 17.2 17.2 17.1 16.8 16.5 16.2 15.7 15.1 14.3 13.6 12.6
UNITÀ DI CONTROLLO
CM-GE 80-2410/A/BAQE 5.5 7.5 24.1 23.8 23.6 23.3 22.8 22.3 21.5 20.8 19.7 18.6 17.3
CM-GE 80-2700/A/BAQE 7.5 10 27 26 25.5 25 24.5 23.6 22.7 21.5 20.2 19
CM-GE 80-3420/A/BAQE 11 15 34.2 33.2 33 32.5 32 31.5 30.7 29.8 29 28 25 21.7
CM-GE 100-510/A/BAQE 0.75 1 5.1 4.9 4.8 4.7 4.7 4.4 4.2 3.8 3.4 3
CM-GE 100-865/A/BAQE 1.5 2 8.6 8.3 8.2 8.1 7.9 7.7 7.5 7.3 7.1 6.8 6.5 6.2 5.6 4.8
AUMENTO PRESSIONE
CM-GE 100-1020/A/BAQE 3 4 H (m) 10.2 10.2 10.1 10 9.9 9.8 9.7 9.5 9.3 9 8.8 8.6 7.9 7.2 6.7
CM-GE 100-1320/A/BAQE 4 5.5 13.2 13.2 13.2 13.1 12.9 12.7 12.4 12 11.7 11.3 10.4 9.3 8.7
CM-GE 100-1650/A/BAQE 5.5 7.5 16.5 16.6 16.5 16.4 16.2 16.1 16 15.7 15.4 15 14.3 13.3 12.7
CM-GE 100-2050/A/BAQE 7.5 10 20.5 21 21 21 20.7 20.5 20 19.8 19.5 19 18 16.7 16
CM-GE 100-2550/A/BAQE 11 15 25.5 25.5 25.5 25.5 25.1 25 25 24.6 24.2 24 23 21.5 21
CM-GE 100-3290/A/BAQE 15 20 32.9 33.1 33 32.9 32.8 32.4 32 31.6 30.5 29.5 28.9 24
CM-GE 125-1075/A/BAQE 4 5.5 10.8 10.1 10.1 10 9.9 9.7 9.5 9.1 8.5 8.3 7 5.4 PRESSURIZZAZIONE
GRUPPI DI
CM-GE 125-1270/A/BAQE 5.5 7.5 12.7 12.6 12.6 12.5 12.5 12.4 12.3 12 11.5 11.4 10.1 8.5
CM-GE 125-1560/A/BAQE 7.5 10 15.6 15.4 15.4 15.3 15.2 15.1 15 14.7 14.5 14.3 13.3 11.6 9.8
CM-GE 125-2100/A/BAQE 11 15 21 21.5 21.5 21.5 21.4 21.2 21 20.9 20 19.8 18 16
CM-GE 125-2550/A/BAQE 15 20 25.5 25.5 25.5 25.5 25.3 25.1 25.1 25 24.5 24 22.5 20.5 17.5
CM-GE 150-966/A/BAQE 5.5 7.5 9.6 9.6 9.5 9.4 9.3 8.7 7.8 6.7 5.9 5.5 NORMALIZZATE E VERTICALI
CM-GE 150-1322/A/BAQE 7.5 10 13.2 13 12.8 12.6 12.5 11.9 11.1 10.1 8.9 8.5 MONOBLOCCO
CM-GE 150-1600/A/BAQE 11 15 16 15.5 15.5 15.4 14.8 14 13 11.8 11 10.5 9.2
CM-GE 150-1950/A/BAQE 15 20 19.5 19.5 19.4 19.3 19.2 18.7 17.8 16.8 16 15.5 14.1 12.5
