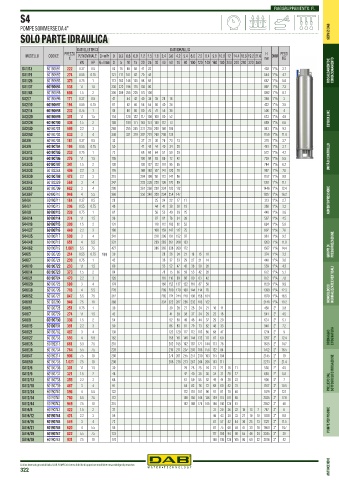

Page 324 - DAB PUMPS - LISTINO 50_2025

RAGGRUPPAMENTO: FL
S4

POMPE SOMMERSE DA 4” SERVIZI DAB
SOLO PARTE IDRAULICA

DATI ELETTRICI DATI IDRAULICI
H
MODELLO CODICE PREZZO P2 NOMINALE Q=m³h 0 0.3 0.6 0.9 1.2 1.5 1.8 2.4 3.0 4.2 5.4 6.0 7.2 8.4 9.6 10.8 12 14.4 16.8 19.2 21.6 mm DNM PESO
€
KG
kW HP Q=l/min 0 5 10 15 20 25 30 40 50 70 90 100 120 140 160 180 200 240 280 320 360
S4 1/13 60190691 222 0.37 0.5 83 78 69 56 41 22 438 1" ¼ 3.7 RISCALDAMENTO E RISCALDAMENTO E CONDIZIONAMENTO
S4 1/19 60190692 274 0.55 0.75 121 111 101 82 70 45 544 1" ¼ 4.7
S4 1/26 60190693 375 0.75 1 173 163 148 125 98 65 667 1" ¼ 5.6
S4 1/37 60190694 538 1.1 1.5 236 222 196 175 130 80 897 1" ¼ 7.3
S4 1/48 60190695 686 1.5 2 306 289 255 225 175 100 1092 1" ¼ 8.7
S4 2/7 60190696 171 0.37 0.5 47 44 42 40 38 35 28 18 358 1" ¼ 3
S4 2/10 60190697 194 0.55 0.75 67 62 60 58 54 50 40 26 422 1" ¼ 3.5
S4 2/14 60190698 232 0.75 1 94 90 86 80 76 70 56 36 506 1" ¼ 4
S4 2/20 60190699 301 1.1 1.5 134 128 122 117 108 100 80 52 633 1" ¼ 4.9 ESYBOX LINE ESYBOX LINE
S4 2/28 60190700 436 1.5 2 188 180 171 163 151 140 112 73 689 1" ¼ 6.6
S4 2/40 60190701 599 2.2 3 268 255 245 231 216 200 160 104 943 1" ¼ 9.3
S4 2/52 60190702 833 3 4 348 331 319 302 281 260 208 135 1159 1" ¼ 11.4
S4 3/6 60190703 181 0.37 0.5 33 32 31 30 26 23 13 378 1" ¼ 3.2
S4 3/9 60190704 199 0.55 0.75 50 47 45 44 40 34 20 461 1" ¼ 3.7
S4 3/13 60190705 233 0.75 1 72 68 66 64 57 50 29 572 1" ¼ 4.2
S4 3/19 60190706 276 1.1 1.5 105 100 98 93 86 72 42 739 1" ¼ 5.5 UNITÀ DI CONTROLLO UNITÀ DI CONTROLLO
S4 3/25 60190707 341 1.5 2 138 130 127 122 110 95 55 784 1" ¼ 6.2
S4 3/32 60192288 406 2.2 3 176 168 162 157 141 120 70 987 1" ¼ 7.8
S4 3/39 60190708 478 2.2 3 215 204 198 191 172 147 86 1157 1" ¼ 9.8
S4 3/45 60192289 568 3 4 247 233 228 220 198 170 99 1301 1" ¼ 11.1
S4 3/51 60190709 682 3 4 280 267 260 250 224 193 112 1446 1" ¼ 12.4
S4 3/67 60190710 946 4 5.5 368 350 340 328 294 254 147 1827 1" ¼ 16.2
S4 4/4 60190711 184 0.37 0.5 28 25 24 22 17 11 313 1" ¼ 2.7 AUMENTO PRESSIONE AUMENTO PRESSIONE
S4 4/7 60190712 206 0.55 0.75 48 44 41 38 30 19 388 1" ¼ 3.2
S4 4/9 60190713 239 0.75 1 62 56 53 49 39 25 440 1" ¼ 3.6
S4 4/14 60190714 274 1.1 1.5 96 87 82 76 61 39 567 1" ¼ 4.5
S4 4/19 60190715 309 1.5 2 131 118 112 103 82 53 694 1" ¼ 5.8
S4 4/27 60190716 440 2.2 3 186 168 159 147 117 75 807 1" ¼ 7.6
S4 4/35 60190717 509 3 4 241 218 206 191 152 97 981 1" ¼ 9.2
S4 4/48 60190718 651 4 5.5 331 299 283 261 208 133 1263 1" ¼ 11.8 PRESSURIZZAZIONE
S4 4/62 60190719 1.061 5.5 7.5 427 386 365 338 269 172 1567 1" ¼ 14.4
S4 6/5 60190720 214 0.55 0.75 H (m) 30 28 26 24 21 19 15 10 374 1" ¼ 3.2 GRUPPI DI GRUPPI DI
S4 6/7 60190721 239 0.75 1 42 38 37 33 29 27 21 14 440 1" ¼ 3.6
S4 6/10 60190722 293 1.1 1.5 60 55 52 47 42 38 30 20 539 1" ¼ 4.3
S4 6/14 60190723 373 1.5 2 84 78 75 66 59 53 42 28 672 1" ¼ 5.1
S4 6/21 60190724 470 2.2 3 126 116 110 99 88 80 63 42 872 1" ¼ 7.8
S4 6/29 60190725 589 3 4 174 160 152 137 122 110 87 58 1120 1" ¼ 9.9 NORMALIZZATE E VERTICALI
S4 6/38 60190726 718 4 5.5 228 209 200 179 160 144 114 76 1399 1" ¼ 12.3
S4 6/52 60190727 847 5.5 7.5 312 285 274 244 218 198 156 104 1870 1" ¼ 16.5 MONOBLOCCO MONOBLOCCO
S4 6/61 60192290 946 7.5 10 366 334 322 287 256 232 183 122 2148 1" ¼ 19.2
S4 8/5 60190728 251 0.75 1 30 30 28 27 26 24 21 16 11 450 2" 3.8
S4 8/7 60190729 274 1.1 1.5 42 41 39 38 37 34 29 23 16 541 2" 4.5
S4 8/9 60190730 336 1.5 2 54 52 50 49 48 44 37 29 20 631 2" 5.1
S4 8/15 60190731 391 2.2 3 90 86 83 81 79 73 62 48 33 940 2" 7.2
S4 8/21 60190732 487 3 4 130 125 120 117 112 103 86 68 47 1214 2" 9
S4 8/27 60190733 593 4 5.5 162 155 151 146 144 132 111 87 60 1257 2" 12.4 DRENAGGIO DRENAGGIO E FOGNATURA
S4 8/35 60192313 661 5.5 7.5 210 202 195 192 187 171 144 113 78 1635 2" 14.7
S4 8/38 60190734 764 5.5 7.5 228 219 211 207 203 186 156 122 84 1762 2" 16.5
S4 8/47 60192314 906 7.5 10 280 270 261 255 251 230 193 151 104 2145 2" 19
S4 8/50 60190735 1.021 7.5 10 298 288 278 273 267 244 206 161 111 2273 2" 21.4
S4 12/6 60190736 301 1.1 1.5 30 29 28 25 24 23 21 18 11 536 2" 4.5
S4 12/9 60190737 321 1.5 2 46 42 40 38 36 34 31 28 17 693 2" 5.8 SOTTOSUOLO E IRRIGAZIONE
S4 12/13 60190738 355 2.2 3 66 61 59 55 52 49 44 38 23 900 2" 7 PRELIEVO DAL PRELIEVO DAL
S4 12/18 60190739 487 3 4 91 84 82 76 72 68 60 52 31 1167 2" 10.5
S4 12/24 60190740 596 4 5.5 122 112 110 101 96 91 81 70 46 1479 2" 12.1
S4 12/34 60190741 780 5.5 7.5 172 158 156 144 136 129 115 101 65 2035 2" 17.8
S4 12/44 60190742 949 7.5 10 215 192 188 175 165 156 140 124 81 2552 2" 48
S4 16/8 60190743 422 1.5 2 37 31 29 26 22 18 13 7 767 2" 6
S4 16/12 60190744 474 2.2 3 55 46 43 39 33 27 19 10 1038 2" 8.8
S4 16/16 60190745 549 3 4 73 61 57 52 44 36 25 13 1321 2" 11.5 POMPE PER PISCINE POMPE PER PISCINE
S4 16/21 60190746 620 4 5.5 96 81 75 68 58 47 33 18 1660 2" 14.7
S4 16/29 60190747 822 5.5 7.5 133 111 104 94 80 65 46 24 2245 2" 20
S4 16/38 60190748 931 7.5 10 174 146 136 124 105 86 60 32 2816 2" 52
