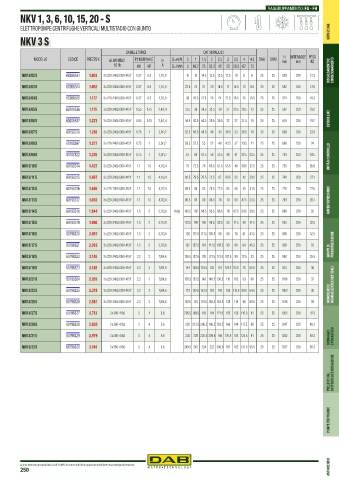

Page 252 - DAB PUMPS - LISTINO 50_2025
P. 252
RAGGRUPPAMENTO: FG - FH
NKV 1, 3, 6, 10, 15, 20 - S
ELETTROPOMPE CENTRIFUGHE VERTICALI MULTISTADIO CON GIUNTO SERVIZI DAB
NKV 3 S
DATI ELETTRICI DATI IDRAULICI
H INTERASSE PESO
MODELLO CODICE PREZZO € ALIMENTAZ. P2 NOMINALE In Q=m /h 0 1 1.5 2 2.5 3 3.5 4 4.5 DNA DNM mm mm KG
3
50 Hz kW HP A Q=l/min 0 16.7 25 33.3 42 50 58.3 67 75
NKV 3/02 S 60206541 1.003 3 x 220-240∆ /380-415Y 0.37 0.5 1,7/1,0 15 15 14.5 13.5 12.5 11.5 10 8 6 25 25 529 250 17.3 RISCALDAMENTO E RISCALDAMENTO E CONDIZIONAMENTO
NKV 3/03 S 60206514 1.052 3 x 220-240∆ /380-415Y 0.37 0.5 1,7/1,0 22.5 22 21 20 18.5 17 14.5 12 8.5 25 25 552 250 17.8
NKV 3/04 S 60206516 1.117 3 x 220-240∆ /380-415Y 0.37 0.5 1,7/1,0 30 28.5 27.5 26 24 21.5 18.5 15 10.5 25 25 574 250 18.3
NKV 3/05 S 60206536 1.175 3 x 220-240∆ /380-415Y 0.55 0.75 2,4/1,4 37.5 36 34.5 32.5 30 27 23.5 18.5 13 25 25 597 250 19.2
ESYBOX LINE ESYBOX LINE
NKV 3/06 S 60206537 1.221 3 x 220-240∆ /380-415Y 0.55 0.75 2,4/1,4 44.5 42.5 40.5 38.5 35.5 32 27 21.5 15 25 25 619 250 19.7
NKV 3/07 S 60190313 1.218 3 x 220-240∆ /380-415Y 0.75 1 3,0/1,7 52.5 50.5 48.5 46 43 38.5 33 26.5 19 25 25 658 250 23.5
NKV 3/08 S 60188597 1.277 3 x 220-240∆ /380-415Y 0.75 1 3,0/1,7 59.5 57.5 55 52 48 43.5 37 29.5 21 25 25 680 250 24
UNITÀ DI CONTROLLO UNITÀ DI CONTROLLO
NKV 3/09 S 60187822 1.335 3 x 220-240∆ /380-415Y 0.75 1 3,0/1,7 67 64 61.5 58 53.5 48 41 32.5 22.5 25 25 703 250 24.5
NKV 3/10 S 60190314 1.437 3 x 220-240∆ /380-415Y 1.1 1.5 4,1/2,4 75 72.5 70 66.5 61.5 55.5 48 38.5 27.5 25 25 725 250 26.6
NKV 3/11 S 60190315 1.497 3 x 220-240∆ /380-415Y 1.1 1.5 4,1/2,4 82.5 79.5 76.5 72.5 67 60.5 52 42 29.5 25 25 748 250 27.1
NKV 3/12 S 60190316 1.565 3 x 220-240∆ /380-415Y 1.1 1.5 4,1/2,4 89.5 86 83 78.5 72.5 65 56 45 31.5 25 25 770 250 27.6
AUMENTO PRESSIONE AUMENTO PRESSIONE
NKV 3/13 S 60190317 1.652 3 x 220-240∆ /380-415Y 1.1 1.5 4,1/2,4 96.5 93 89 84.5 78 70 60 47.5 33.5 25 25 793 250 28.1
NKV 3/14 S 60190318 1.944 3 x 220-240∆ /380-415Y 1.5 2 5,1/3,0 H (m) 105.5 102 98.5 93.5 86.5 78 67.5 54.5 39.5 25 25 860 250 32
NKV 3/15 S 60190319 1.990 3 x 220-240∆ /380-415Y 1.5 2 5,1/3,0 112.5 109 105 99.5 92.5 83 71.5 58 41.5 25 25 883 250 32.5
NKV 3/16 S 60190320 2.057 3 x 220-240∆ /380-415Y 1.5 2 5,1/3,0 120 115.5 111.5 105.5 98 88 76 61 43.5 25 25 905 250 32.5
NKV 3/17 S 60190321 2.093 3 x 220-240∆ /380-415Y 1.5 2 5,1/3,0 127 122.5 118 111.5 103.5 93 80 64 45.5 25 25 928 250 33 PRESSURIZZAZIONE
NKV 3/18 S 60190322 2.148 3 x 220-240∆ /380-415Y 2.2 3 7,8/4,6 136.5 132.5 128 121.5 113.5 102.5 89 72.5 53 25 25 950 250 35.5 GRUPPI DI GRUPPI DI
NKV 3/19 S 60190323 2.185 3 x 220-240∆ /380-415Y 2.2 3 7,8/4,6 144 139.5 134.5 128 119 107.5 93.5 76 55.5 25 25 973 250 36
NKV 3/21 S 60190324 2.205 3 x 220-240∆ /380-415Y 2.2 3 7,8/4,6 158.5 153.5 148 140.5 130.5 118 102 83 60 25 25 1018 250 37
NKV 3/23 S 60190325 2.378 3 x 220-240∆ /380-415Y 2.2 3 7,8/4,6 173 167.5 161.5 153 142 128 110.5 89.5 64.5 25 25 1063 250 38 MONOBLOCCO MONOBLOCCO NORMALIZZATE E VERTICALI
NKV 3/25 S 60190326 2.581 3 x 220-240∆ /380-415Y 2.2 3 7,8/4,6 187.5 181 174.5 165.5 153.5 138 119 96 68.5 25 25 1108 250 39
NKV 3/27 S 60190327 2.713 3 x 380-415∆ 3 4 5.6 205.5 199.5 193 184 171.5 155 135 110.5 81 25 25 1202 250 47.3
NKV 3/29 S 60190328 2.830 3 x 380-415∆ 3 4 5.6 220 213.5 206.5 196.5 183.5 166 144 117.5 86 25 25 1247 250 48.3
DRENAGGIO DRENAGGIO E FOGNATURA
NKV 3/31 S 60190329 2.979 3 x 380-415∆ 3 4 5.6 235 228 220.5 209.5 195 176.5 153 124.5 91 25 25 1292 250 49.3
NKV 3/33 S 60190330 3.104 3 x 380-415∆ 3 4 5.6 249.5 242 234 222 206.5 187 162 131.5 95.5 25 25 1337 250 50.3
PRELIEVO DAL PRELIEVO DAL SOTTOSUOLO E IRRIGAZIONE
POMPE PER PISCINE POMPE PER PISCINE
ANTINCENDIO ANTICENDIO
o
r
e m
i
c
f
d
i
a
o d
i a
t
t
p
r
t
p
o
e s
r
e
o d
i p
a
i
s
v
v
n
a o
e
n
o
i
g
o
l
o g
r
t
v
a
o
s
t
i
s
s
r
s
t
i
Listino riservato grossisti Italia. DAB PUMPS si riserva il diritto di apportare modifice senna oooligo di preavviso. o .
