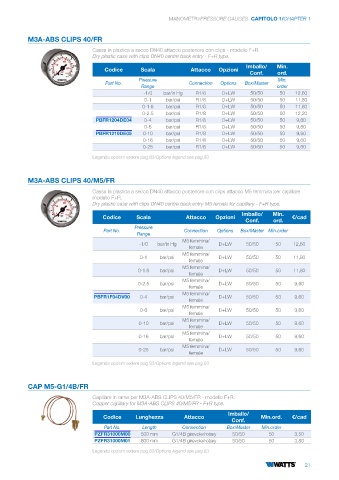

Page 23 - WATTS - LISTINO FIMET 2024 REV1

MANOMETRI/PRESSURE GAUGES CAPITOLO 1/CHAPTER 1

M3A-ABS CLIPS 40/FR
Cassa in plastica a secco DN40 attacco posteriore con clips - modello F+R.
Dry plastic case with clips DN40 centre back entry - F+R type.
Imballo/ Min.
Codice Scala Attacco Opzioni
Conf. ord.
Pressure Min.
Part No. Connection Options Box/Master
Range order
-1/0 bar/in Hg R1/8 D+LW 50/50 50 12,60
0-1 bar/psi R1/8 D+LW 50/50 50 11,80
0-1.6 bar/psi R1/8 D+LW 50/50 50 11,80
0-2.5 bar/psi R1/8 D+LW 50/50 50 12,20
PBFR1204DE04 0-4 bar/psi R1/8 D+LW 50/50 50 9,60
0-6 bar/psi R1/8 D+LW 50/50 50 9,60
PBFR1210DE05 0-10 bar/psi R1/8 D+LW 50/50 50 9,60
0-16 bar/psi R1/8 D+LW 50/50 50 9,60
0-25 bar/psi R1/8 D+LW 50/50 50 9,60
Legenda opzioni vedere pag.83/Options legend see pag.83

M3A-ABS CLIPS 40/M5/FR
Cassa in plastica a secco DN40 attacco posteriore con clips attacco M5 femmina per capillare
modello F+R.
Dry plastic case with clips DN40 centre back entry M5 female for capillary - F+R type.
Imballo/ Min.
Codice Scala Attacco Opzioni €/cad
Conf. ord.
Pressure
Part No. Connection Options Box/Master Min.order
Range
M5 femmina/
-1/0 bar/in Hg D+LW 50/50 50 12,60
female
M5 femmina/
0-1 bar/psi D+LW 50/50 50 11,80
female
M5 femmina/
0-1.6 bar/psi D+LW 50/50 50 11,80
female
M5 femmina/
0-2.5 bar/psi D+LW 50/50 50 9,60
female
M5 femmina/
PBFR1F04DV00 0-4 bar/psi D+LW 50/50 50 9,60
female
M5 femmina/
0-6 bar/psi D+LW 50/50 50 9,60
female
M5 femmina/
0-10 bar/psi D+LW 50/50 50 9,60
female
M5 femmina/
0-16 bar/psi D+LW 50/50 50 9,60
female
M5 femmina/
0-25 bar/psi D+LW 50/50 50 9,60
female
Legenda opzioni vedere pag.83/Options legend see pag.83

CAP M5-G1/4B/FR
Capillare in rame per M3A-ABS CLIPS 40/M5/FR - modello F+R.
Copper capillary for M3A-ABS CLIPS 40/M5/FR - F+R type.
Imballo/
Codice Lunghezza Attacco Min.ord. €/cad
Conf.
Part No. Length Connection Box/Master Min.order
PZFR31000M00 500 mm G1/4B girevole/rotary 50/50 50 3,50
PZFR31000M01 800 mm G1/4B girevole/rotary 50/50 50 3,80
Legenda opzioni vedere pag.83/Options legend see pag.83
