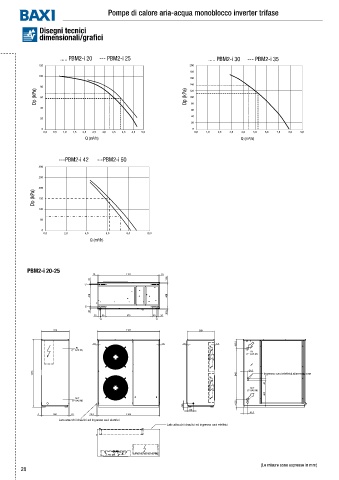

Pompe di calore aria-acqua monoblocco inverter trifase

Disegni tecnici
dimensionali/grafici

..... PBM2-i 20 --- PBM2-i 25 ..... PBM2-i 30 --- PBM2-i 35
120 200
180
100
160
140
80 120
Dp (kPa) 60 Dp (kPa) 100

40 80
60
40
20
20
0 0
0,0 0,5 1,0 1,5 2,0 2,5 3,0 3,5 4,0 4,5 5,0 0,0 1,0 2,0 3,0 4,0 5,0 6,0 7,0 8,0 9,0
Q (m³/h) Q (m³/h)

---PBM2-i 42 - . -PBM2-i 50
300
250

200
Dp (kPa) 150

100
50
0
0,0 2,0 4,0 6,0 8,0 10,0
Q (m³/h)

PBM2-i 20-25

(Le misure sono espresse in mm)
