19 VALVOLE PER RADIATORI
RADIATOR VALVES

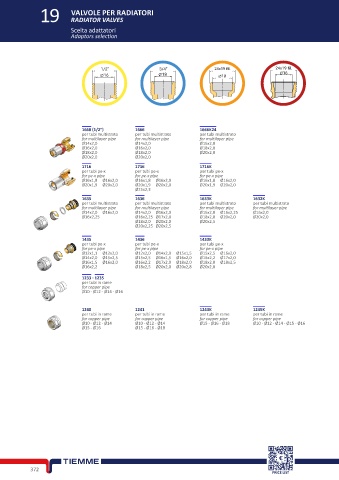

Scelta adattatori
Adaptors selection

1/2” 3/4” 24x19 fil. 24x19 fil.
16 18 18 16

1668 (1/2”) 1666 1666K24
per tubi multistrato per tubi multistrato per tubi multistrato
for multilayer pipe for multilayer pipe for multilayer pipe
Ø14x2,0 Ø14x2,0 Ø16x2,0
Ø16x2,0 Ø16x2,0 Ø18x2,0
Ø18x2,0 Ø18x2,0 Ø20x2,0
Ø20x2,0 Ø20x2,0
1716 1716 1716K
per tubi pe-x per tubi pe-x per tubi pe-x
for pe-x pipe for pe-x pipe for pe-x pipe
Ø16x1,8 Ø16x2,0 Ø16x1,8 Ø16x2,0 Ø16x1,8 Ø16x2,0
Ø20x1,9 Ø20x2,0 Ø20x1,9 Ø20x2,0 Ø20x1,9 Ø20x2,0
Ø25x2,3
1635 1636 1633K 1632K
per tubi multistrato per tubi multistrato per tubi multistrato per tubi multistrato
for multilayer pipe for multilayer pipe for multilayer pipe for multilayer pipe
Ø14x2,0 Ø16x2,0 Ø14x2,0 Ø16x2,0 Ø16x2,0 Ø16x2,25 Ø16x2,0
Ø16x2,25 Ø16x2,25 Ø17x2,0 Ø18x2,0 Ø20x2,0 Ø20x2,0
Ø18x2,0 Ø20x2,0 Ø20x2,5
Ø20x2,25 Ø20x2,5

1435 1436 1433K
per tubi pe-x per tubi pe-x per tubi pe-x
for pe-x pipe for pe-x pipe for pe-x pipe
Ø12x1,1 Ø12x2,0 Ø12x2,0 Ø14x2,0 Ø15x1,5 Ø15x2,5 Ø16x2,0
Ø14x2,0 Ø15x2,5 Ø15x2,5 Ø16x1,5 Ø16x2,0 Ø16x2,2 Ø17x2,0
Ø16x1,5 Ø16x2,0 Ø16x2,2 Ø17x2,0 Ø18x2,0 Ø18x2,0 Ø18x2,5
Ø16x2,2 Ø18x2,5 Ø20x2,0 Ø20x2,8 Ø20x2,0
1233 - 1235
per tubi in rame
for copper pipe
Ø10 - Ø12 - Ø14 - Ø16

1240 1241 1243K 1245K
per tubi in rame per tubi in rame per tubi in rame per tubi in rame
for copper pipe for copper pipe for copper pipe for copper pipe
Ø10 - Ø12 - Ø14 Ø10 - Ø12 - Ø14 Ø15 - Ø16 - Ø18 Ø10 - Ø12 - Ø14 - Ø15 - Ø16
Ø15 - Ø16 Ø15 - Ø16 - Ø18
