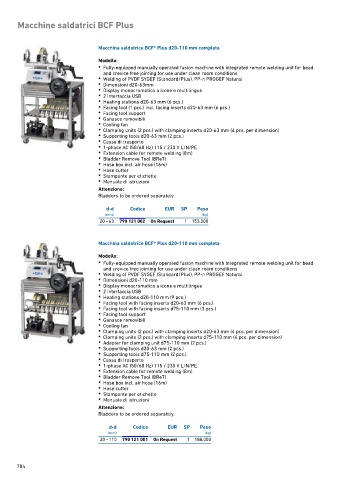

Page 784 - GEORGFISCHER - LISTINO 876 - FIDRA

Macchine saldatrici BCF Plus

Macchina saldatrice BCF® Plus d20-110 mm completa

Modello:
• Fully-equipped manually operated fusion machine with integrated remote welding unit for bead
and crevice free jointing for use under clean room conditions
• Welding of PVDF SYGEF (Standard/Plus), PP-n PROGEF Natural
• Dimensioni d20-63mm
• Display monocromatico a icone e multilingue
• 2 interfaccia USB
• Heating stations d20-63 mm (6 pcs.)
• Facing tool (1 pcs.) incl. facing inserts d20-63 mm (6 pcs.)
• Facing tool support
• Ganasce removibili
• Cooling fan
• Clamping units (2 pcs.) with clamping inserts d20-63 mm (4 pcs. per dimension)
• Supporting tools d20-63 mm (2 pcs.)
• Cassa di trasporto
• 1-phase AC (50/60 Hz) 115 / 230 V L/N/PE
• Extension cable for remote welding (8m)
• Bladder Remove Tool (BReT)
• Hose box incl. air hose (16m)
• Hose cutter
• Stampante per etichette
• Manuale di istruzioni

Attenzione:
Bladders to be ordered separately.

d-d Codice EUR SP Peso
(mm) (kg)
20 ‐ 63 790 121 002 On Request 1 153,000

Macchina saldatrice BCF® Plus d20-110 mm completa
Modello:
• Fully-equipped manually operated fusion machine with integrated remote welding unit for bead
and crevice free jointing for use under clean room conditions
• Welding of PVDF SYGEF (Standard/Plus), PP-n PROGEF Natural
• Dimensioni d20-110 mm
• Display monocromatico a icone e multilingue
• 2 interfaccia USB
• Heating stations d20-110 mm (9 pcs.)
• Facing tool with facing inserts d20-63 mm (6 pcs.)
• Facing tool with facing inserts d75-110 mm (3 pcs.)
• Facing tool support
• Ganasce removibili
• Cooling fan
• Clamping units (2 pcs.) with clamping inserts d20-63 mm (4 pcs. per dimension)
• Clamping units (2 pcs.) with clamping inserts d75-110 mm (4 pcs. per dimension)
• Adapter for clamping unit d75-110 mm (2 pcs.)
• Supporting tools d20-63 mm (2 pcs.)
• Supporting tools d75-110 mm (2 pcs.)
• Cassa di trasporto
• 1-phase AC (50/60 Hz) 115 / 230 V L/N/PE
• Extension cable for remote welding (8m)
• Bladder Remove Tool (BReT)
• Hose box incl. air hose (16m)
• Hose cutter
• Stampante per etichette
• Manuale di istruzioni

Attenzione:
Bladders to be ordered separately.

d-d Codice EUR SP Peso
(mm) (kg)
20 ‐ 110 790 121 001 On Request 1 188,000

784
