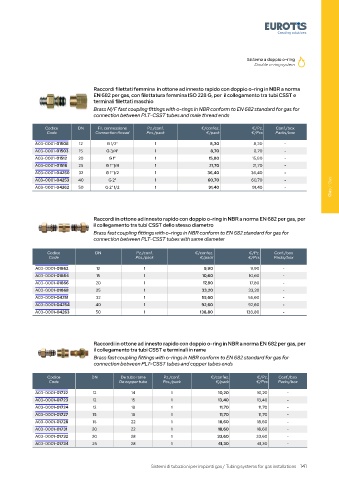

Page 141 - EUROTIS - CATALISTINO 10_2024 - FIDRA

Sistema a doppio o-ring
Double o-ring system

Raccordi filettati femmina in ottone ad innesto rapido con doppio o-ring in NBR a norma
EN 682 per gas, con filettatura femmina ISO 228 G, per il collegamento tra tubi CSST e
terminali filettati maschio
Brass M/F fast coupling fittings with o-rings in NBR conform to EN 682 standard for gas for
connection between PLT-CSST tubes and male thread ends

Codice DN Fil. connessione Pz./conf. €/confez. €/Pz. Conf./box
Code Connection thread Pcs./pack €/pack €/Pcs Packs/box
A03-0001-01508 12 G 1/2" 1 8,30 8,30 -
A03-0001-01503 15 G 3/4" 1 8,70 8,70 -
A03-0001-01512 20 G 1" 1 15,80 15,80 -
A03-0001-01516 25 G 1" 1/4 1 21,70 21,70 -
A03-0001-04250 32 G 1" 1/2 1 36,40 36,40 -
A03-0001-04253 40 G 2" 1 60,70 60,70 -
A03-0001-04262 50 G 2" 1/2 1 91,40 91,40 - Gas / Gas

Raccordi in ottone ad innesto rapido con doppio o-ring in NBR a norma EN 682 per gas, per
il collegamento tra tubi CSST dello stesso diametro
Brass fast coupling fittings with o-rings in NBR conform to EN 682 standard for gas for
connection between PLT-CSST tubes with same diameter

Codice DN Pz./conf. €/confez. €/Pz. Conf./box
Code Pcs./pack €/pack €/Pcs Packs/box
A03-0001-01862 12 1 9,90 9,90 -
A03-0001-01864 15 1 10,60 10,60 -
A03-0001-01866 20 1 17,80 17,80 -
A03-0001-01868 25 1 33,20 33,20 -
A03-0001-04251 32 1 55,60 55,60 -
A03-0001-04254 40 1 92,60 92,60 -
A03-0001-04263 50 1 138,80 138,80 -

Raccordi in ottone ad innesto rapido con doppio o-ring in NBR a norma EN 682 per gas, per
il collegamento tra tubi CSST e terminali in rame
Brass fast coupling fittings with o-rings in NBR conform to EN 682 standard for gas for
connection between PLT-CSST tubes and copper tubes ends

Codice DN De tubo rame Pz./conf. €/confez. €/Pz. Conf./box
Code De copper tube Pcs./pack €/pack €/Pcs Packs/box

A03-0001-01722 12 14 1 10,20 10,20 -
A03-0001-01723 12 15 1 13,40 13,40 -
A03-0001-01724 12 18 1 11,70 11,70 -
A03-0001-01727 15 18 1 11,70 11,70 -
A03-0001-01728 15 22 1 18,60 18,60 -
A03-0001-01731 20 22 1 18,60 18,60 -
A03-0001-01732 20 28 1 33,60 33,60 -
A03-0001-01734 25 28 1 41,30 41,30 -

Sistemi di tubazioni per impianti gas / Tubing systems for gas installations 141
