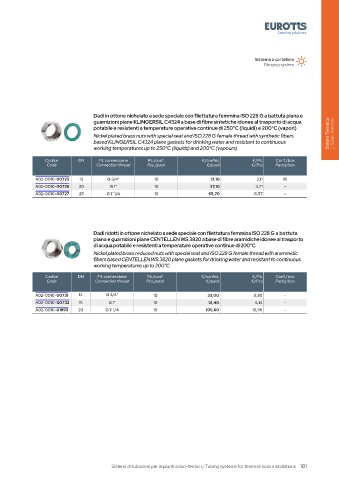

Page 101 - EUROTIS - CATALISTINO 10_2024 - FIDRA

Sistema a cartellare
Flanging system

Dadi in ottone nichelato a sede speciale con filettatura femmina ISO 228 G a battuta piana e
guarnizioni piane KLINGERSIL C4324 a base di fibre sintetiche idonee al trasporto di acqua
potabile e resistenti a temperature operative continue di 250°C (liquidi) e 200°C (vapori)
Nickel plated brass nuts with special seat and ISO 228 G female thread with synthetic fibers Solare Termico / Solar-thermal
based KLINGERSIL C4324 plane gaskets for drinking water and resistant to continuous
working temperatures up to 250°C (liquids) and 200°C (vapours)

Codice DN Fil. connessione Pz./conf. €/confez. €/Pz. Conf./box
Code Connection thread Pcs./pack €/pack €/Pcs Packs/box

A02-0010-00725 15 G 3/4" 10 21,10 2,11 10
A02-0010-00726 20 G 1" 10 37,10 3,71 -
A02-0010-00727 25 G 1" 1/4 10 65,70 6,57 -

Dadi ridotti in ottone nichelato a sede speciale con filettatura femmina ISO 228 G a battuta
piana e guarnizioni piane CENTELLEN WS 3820 a base di fibre aramidiche idonee al trasporto
di acqua potabile e resistenti a temperature operative continue di 200°C
Nickel plated brass reduced nuts with special seat and ISO 228 G female thread with arammidic
fibers based CENTELLEN WS 3820 plane gaskets for drinking water and resistant to continuous
working temperatures up to 200°C
Codice DN Fil. connessione Pz./conf. €/confez. €/Pz. Conf./box
Code Connection thread Pcs./pack €/pack €/Pcs Packs/box

A02-0010-00731 12 G 3/4" 10 33,00 3,30 -
A02-0010-00732 15 G 1" 10 51,40 5,14 -
A02-0010-01893 20 G 1" 1/4 10 105,60 10,56 -

Sistemi di tubazioni per impianti solari-termici / Tubing systems for thermal-solar installations 101
