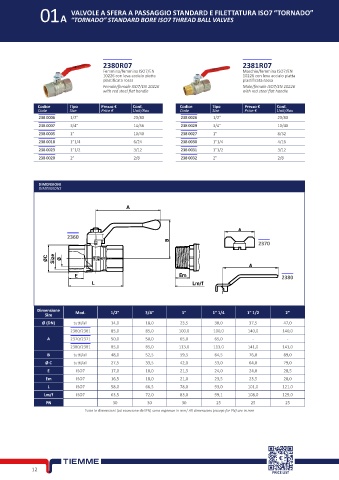

VALVOLE A SFERA A PASSAGGIO STANDARD E FILETTATURA ISO7 “TORNADO”
01A “TORNADO” STANDARD BORE ISO7 THREAD BALL VALVES

2380R07 2381R07
Femmina/femmina ISO7/EN Maschio/femmina ISO7/EN
10226 con leva acciaio piatta 10226 con leva acciaio piatta
plastificata rossa plastificata rossa
Female/female ISO7/EN 10226 Male/female ISO7/EN 10226
with red steel flat handle with red steel flat handle

Codice Tipo Prezzo € Conf. Codice Tipo Prezzo € Conf.
Code Size Price € Unit/Box Code Size Price € Unit/Box
238 0006 1/2” 20/80 238 0026 1/2” 20/80
238 0007 3/4” 14/56 238 0029 3/4” 10/40
238 0005 1” 10/40 238 0027 1” 8/32
238 0018 1”1/4 6/24 238 0030 1”1/4 4/16
238 0023 1”1/2 3/12 238 0031 1”1/2 3/12
238 0020 2” 2/8 238 0032 2” 2/8

DIMENSIONI
DIMENSIONS

A

2360
B
2370

ØC Size Ø

E Em 2380
L Lm/f

Dimensione Mod. 1/2” 3/4” 1” 1” 1/4 1” 1/2 2”
Size
Ø (DN) tutti/all 14,0 18,0 23,5 30,0 37,5 47,0
2360/2361 85,0 85,0 100,0 100,0 140,0 140,0
A 2370/2371 50,0 50,0 65,0 65,0 - -
2380/2381 85,0 85,0 113,0 113,0 141,0 141,0
B tutti/all 48,0 52,5 59,5 64,5 76,0 89,0
Ø C tutti/all 27,5 33,5 42,0 53,0 64,0 79,0
E ISO7 17,0 18,0 21,5 24,0 24,0 28,5
Em ISO7 16,5 18,0 21,0 23,5 23,5 28,0
L ISO7 58,0 66,5 78,0 93,0 101,0 121,0
Lm/f ISO7 63,5 72,0 83,0 99,1 108,0 129,0
PN 30 30 30 25 25 25
Tutte le dimensioni (ad eccezione del PN) sono espresse in mm/ All dimensions (except for PN) are in mm
