Page 25 - TIEMME - COMPONENTI IDRAULICI - DELLAFIORE

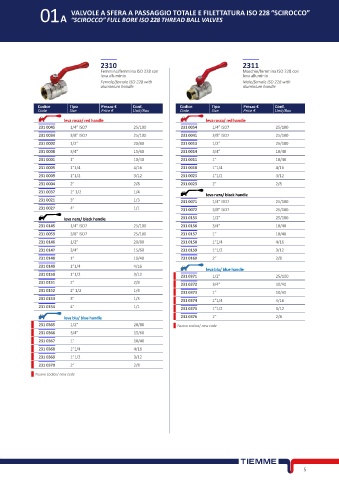

VALVOLE A SFERA A PASSAGGIO TOTALE E FILETTATURA ISO 228 “SCIROCCO”
01A “SCIROCCO” FULL BORE ISO 228 THREAD BALL VALVES

2310 2311
Femmina/femmina ISO 228 con Maschio/femmina ISO 228 con
leva alluminio leva alluminio
Female/female ISO 228 with Male/female ISO 228 with
aluminium handle aluminium handle

Codice Tipo Prezzo € Conf. Codice Tipo Prezzo € Conf.
Code Size Price € Unit/Box Code Size Price € Unit/Box
leva rossa/ red handle leva rossa/ red handle
231 0045 1/4” ISO7 25/100 231 0054 1/4” ISO7 25/100
231 0034 3/8” ISO7 25/100 231 0041 3/8” ISO7 25/100
231 0002 1/2” 20/80 231 0013 1/2” 25/100
231 0008 3/4” 15/60 231 0014 3/4” 10/40
231 0001 1” 10/40 231 0011 1” 10/40
231 0005 1”1/4 4/16 231 0018 1”1/4 4/16
231 0009 1”1/2 3/12 231 0025 1”1/2 3/12
231 0004 2” 2/8 231 0023 2” 2/8
231 0037 2” 1/2 1/4
leva nera/ black handle
231 0021 3” 1/3 231 0071 1/4” ISO7 25/100
231 0027 4” 1/1 231 0072 3/8” ISO7 25/100
leva nera/ black handle 231 0155 1/2” 25/100
231 0145 1/4” ISO7 25/100 231 0156 3/4” 10/40
231 0059 3/8” ISO7 25/100 231 0157 1” 10/40
231 0146 1/2” 20/80 231 0158 1”1/4 4/16
231 0147 3/4” 15/60 231 0159 1”1/2 3/12
231 0148 1” 10/40 231 0160 2” 2/8
231 0149 1”1/4 4/16
leva blu/ blue handle
231 0150 1”1/2 3/12 231 0371 1/2” 25/100
231 0151 2” 2/8 231 0372 3/4” 10/40
231 0152 2” 1/2 1/4 231 0373 1” 10/40
231 0153 3” 1/3 231 0374 1”1/4 4/16
231 0154 4” 1/1 231 0375 1”1/2 3/12

leva blu/ blue handle 231 0376 2” 2/8
231 0365 1/2” 20/80 Nuovo codice/ new code
231 0366 3/4” 15/60
231 0367 1” 10/40
231 0368 1”1/4 4/16
231 0369 1”1/2 3/12
231 0370 2” 2/8
Nuovo codice/ new code

5
