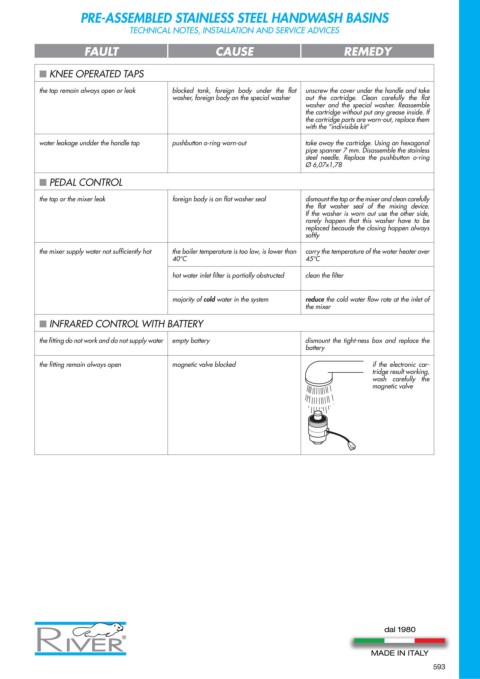

PRE-ASSEMBLED STAINLESS STEEL HANDWASH BASINS
TECHNICAL NOTES, INSTALLATION AND SERVICE ADVICES

FAULT CAUSE REMEDY

Q KNEE OPERATED TAPS

the tap remain always open or leak blocked tank, foreign body under the flat unscrew the cover under the handle and take
washer, foreign body on the special washer out the cartridge. Clean carefully the flat
washer and the special washer. Reassemble
the cartridge without put any grease inside. If
the cartridge parts are worn-out, replace them
with the “indivisible kit”

water leakage undder the handle tap pushbutton o-ring worn-out take away the cartridge. Using an hexagonal
pipe spanner 7 mm. Disassemble the stainless
steel needle. Replace the pushbutton o-ring
Ø 6,07x1,78

Q PEDAL CONTROL
the tap or the mixer leak foreign body is on flat washer seal dismount the tap or the mixer and clean carefully
the flat washer seal of the mixing device.
If the washer is worn out use the other side,
rarely happen that this washer have to be
replaced becaude the closing happen always
softly
the mixer supply water not sufficiently hot the boiler temperature is too low, is lower than carry the temperature of the water heater over
40°C 45°C
hot water inlet filter is partially obstructed clean the filter

majority of cold water in the system reduce the cold water flow rate at the inlet of
the mixer
Q INFRARED CONTROL WITH BATTERY

the fitting do not work and do not supply water empty battery dismount the tight-ness box and replace the
battery

the fitting remain always open magnetic valve blocked if the electronic car-
tridge result working,
wash carefully the
magnetic valve
