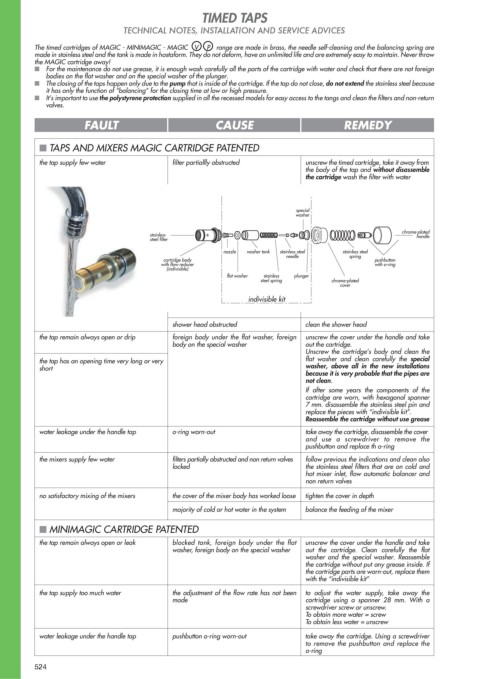

Page 524 - RIVER - CATALOGO 2022 - DELLAFIORE

TIMED TAPS
TECHNICAL NOTES, INSTALLATION AND SERVICE ADVICES

The timed cartridges of MAGIC - MINIMAGIC - MAGIC V P range are made in brass, the needle self-cleaning and the balancing spring are
made in stainless steel and the tank is made in hostaform. They do not deform, have an unlimited life and are extremely easy to maintain. Never throw
the MAGIC cartridge away!
Q For the maintenance do not use grease, it is enough wash carefully all the parts of the cartridge with water and check that there are not foreign
bodies on the flat washer and on the special washer of the plunger.
Q The closing of the taps happen only due to the pump that is inside of the cartridge. If the tap do not close, do not extend the stainless steel because
it has only the function of “balancing” for the closing time at low or high pressure.
Q It’s important to use the polystyrene protection supplied in all the recessed models for easy access to the tangs and clean the filters and non-return
valves.
FAULT CAUSE REMEDY

Q TAPS AND MIXERS MAGIC CARTRIDGE PATENTED

the tap supply few water filter partiallly obstructed unscrew the timed cartridge, take it away from
the body of the tap and without disassemble
the cartridge wash the filter with water

special
washer

chrome-plated
stainless handle
steel filter
nozzle washer tank stainless steel stainless steel
needle spring
cartridge body pushbutton
with flow reducer with o-ring
(indivisible)
flat washer stainless plunger
steel spring chrome-plated
cover
indivisible kit

shower head obstructed clean the shower head
the tap remain always open or drip foreign body under the flat washer, foreign unscrew the cover under the handle and take
body on the special washer out the cartridge.
Unscrew the cartridge’s body and clean the
the tap has an opening time very long or very flat washer and clean carefully the special
short washer, above all in the new installations
because it is very probable that the pipes are
not clean.
If after some years the components of the
cartridge are worn, with hexagonal spanner
7 mm. disassemble the stainless steel pin and
replace the pieces with “indivisible kit”.
Reassemble the cartridge without use grease
water leakage under the handle tap o-ring worn-out take away the cartridge, disassemble the cover
and use a screwdriver to remove the
pushbutton and replace th o-ring
the mixers supply few water filters partially obstructed and non return valves follow previous the indications and clean also
locked the stainless steel filters that are on cold and
hot mixer inlet, flow automatic balancer and
non return valves
no satisfactory mixing of the mixers the cover of the mixer body has worked loose tighten the cover in depth
majority of cold or hot water in the system balance the feeding of the mixer

Q MINIMAGIC CARTRIDGE PATENTED

the tap remain always open or leak blocked tank, foreign body under the flat unscrew the cover under the handle and take
washer, foreign body on the special washer out the cartridge. Clean carefully the flat
washer and the special washer. Reassemble
the cartridge without put any grease inside. If
the cartridge parts are worn-out, replace them
with the “indivisible kit”
the tap supply too much water the adjustment of the flow rate has not been to adjust the water supply, take away the
made cartridge using a spanner 28 mm. With a
screwdriver screw or unscrew.
To obtain more water = screw
To obtain less water = unscrew
water leakage under the handle tap pushbutton o-ring worn-out take away the cartridge. Using a screwdriver
to remove the pushbutton and replace the
o-ring
