Page 119 - FUJITSU - SPLIT-MULTISPLIT

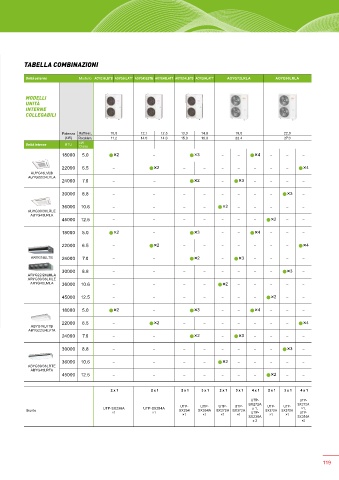

TABELLA COMBINAZIONI

Unità esterne Modello AOYG36LBTB AOYG36LATT AOYG45LBTB AOYG45LATT AOYG54LBTB AOYG54LATT AOYG72LRLA AOYG90LRLA

MODELLI
UNITÀ
INTERNE
COLLEGABILI

Potenza Raffresc. 10.0 12.1 12.5 13.3 14.0 19.0 22.0
(kW) Riscaldam. 11.2 14.0 14.0 15.0 16.0 22.4 27.0
Unità interne BTU kW
Class
18000 5.0  ×2 –  ×3 – –  ×4 – – –

22000 6.5 –  ×2 – – – – – – –  ×4
AUYG18LVLB
AUYG22/24LVLA
24000 7.0 – –  ×2 –  ×3 – – – –
30000 8.8 – – – – – – – –  ×3 –

36000 10.6 – – – –  ×2 – – – – –
AUYG30/36LRLE
AUYG45LRLA
45000 12.5 – – – – – – –  ×2 – –
18000 5.0  ×2 –  ×3 – –  ×4 – – –

22000 6.5 –  ×2 – – – – – – –  ×4

ARYG18LLTB 24000 7.0 – –  ×2 –  ×3 – – – –

30000 8.8 – – – – – – – –  ×3 –
ARYG22/24LMLA
ARYG30/36LMLE
ARYG45LMLA 36000 10.6 – – – –  ×2 – – – – –
45000 12.5 – – – – – – –  ×2 – –

18000 5.0  ×2 –  ×3 – –  ×4 – – –

22000 6.5 –  ×2 – – – – – – –  ×4
ABYG18LVTB
ABYG22/24LVTA
24000 7.0 – –  ×2 –  ×3 – – – –

30000 8.8 – – – – – – – –  ×3 –

36000 10.6 – – – –  ×2 – – – – –
ABYG30/36LRTE
ABYG45LRTA
45000 12.5 – – – – – – –  ×2 – –

2 x 1 2 x 1 2 x 1 3 x 1 2 x 1 3 x 1 4 x 1 2 x 1 3 x 1 4 x 1
UTP- UTP-
SX272A SX272A
UTP-SX236A UTP-SX254A UTP- UTP- UTP- UTP- x 1, UTP- UTP- ×1,
Giunto ×1 ×1 SX254 SX354A SX272A SX372A UTP- SX272A SX372A
×1 ×1 ×1 ×1 ×1 ×1 UTP-
SX236A SX254A
x 2 ×2
