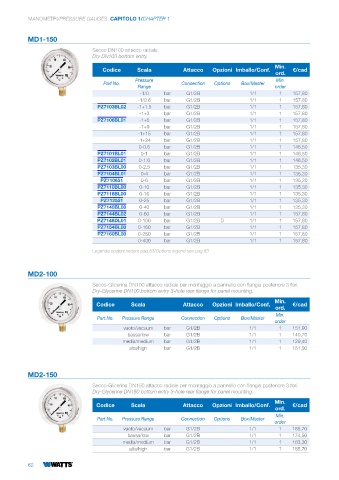

Page 64 - WATTS - LISTINO FIMET 2024 REV1

MANOMETRI/PRESSURE GAUGES CAPITOLO 1/CHAPTER 1

MD1-150
Secco DN100 attacco radiale.
Dry DN100 bottom entry.
Min.
Codice Scala Attacco Opzioni Imballo/Conf. €/cad
ord.
Pressure Min.
Part No. Connection Options Box/Master
Range order
-1/0 bar G1/2B 1/1 1 157,80
-1/0.6 bar G1/2B 1/1 1 157,80
PZ7103BL02 -1+1.5 bar G1/2B 1/1 1 157,80
-1+3 bar G1/2B 1/1 1 157,80
PZ7106BL01 -1+5 bar G1/2B 1/1 1 157,80
-1+9 bar G1/2B 1/1 1 157,80
-1+15 bar G1/2B 1/1 1 157,80
-1+24 bar G1/2B 1/1 1 157,80
0-0.6 bar G1/2B 1/1 1 146,50
PZ7101BL01 0-1 bar G1/2B 1/1 1 146,50
PZ7102BL01 0-1.6 bar G1/2B 1/1 1 146,50
PZ7103BL00 0-2.5 bar G1/2B 1/1 1 135,30
PZ7104BL01 0-4 bar G1/2B 1/1 1 135,30
PZ710651 0-6 bar G1/2B 1/1 1 135,30
PZ7110BL00 0-10 bar G1/2B 1/1 1 135,30
PZ7116BL00 0-16 bar G1/2B 1/1 1 135,30
PZ712551 0-25 bar G1/2B 1/1 1 135,30
PZ7140BL00 0-40 bar G1/2B 1/1 1 135,30
PZ7144BL02 0-60 bar G1/2B 1/1 1 157,80
PZ7148DL01 0-100 bar G1/2B D 1/1 1 157,80
PZ7154BL00 0-160 bar G1/2B 1/1 1 157,80
PZ7160BL00 0-250 bar G1/2B 1/1 1 157,80
0-400 bar G1/2B 1/1 1 157,80
Legenda opzioni vedere pag.83/Options legend see pag.83

MD2-100

Secco-Glicerina DN100 attacco radiale per montaggio a pannello con flangia posteriore 3 fori.
Dry-Glycerine DN100 bottom entry 3-hole rear flange for panel mounting.
Min.
Codice Scala Attacco Opzioni Imballo/Conf. €/cad
ord.
Min.
Part No. Pressure Range Connection Options Box/Master
order
vuoto/vacuum bar G1/2B 1/1 1 151,90
bassa/low bar G1/2B 1/1 1 140,70
media/medium bar G1/2B 1/1 1 129,40
alta/high bar G1/2B 1/1 1 151,90

MD2-150

Secco-Glicerina DN150 attacco radiale per montaggio a pannello con flangia posteriore 3 fori.
Dry-Glycerine DN150 bottom entry 3-hole rear flange for panel mounting.
Min.
Codice Scala Attacco Opzioni Imballo/Conf. €/cad
ord.
Min.
Part No. Pressure Range Connection Options Box/Master
order
vuoto/vacuum bar G1/2B 1/1 1 185,70
bassa/low bar G1/2B 1/1 1 174,50
media/medium bar G1/2B 1/1 1 163,30
alta/high bar G1/2B 1/1 1 185,70
